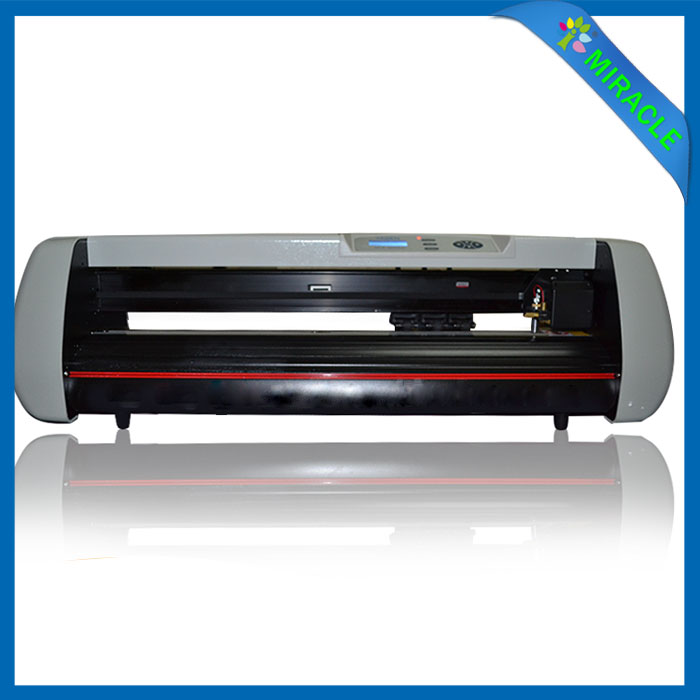

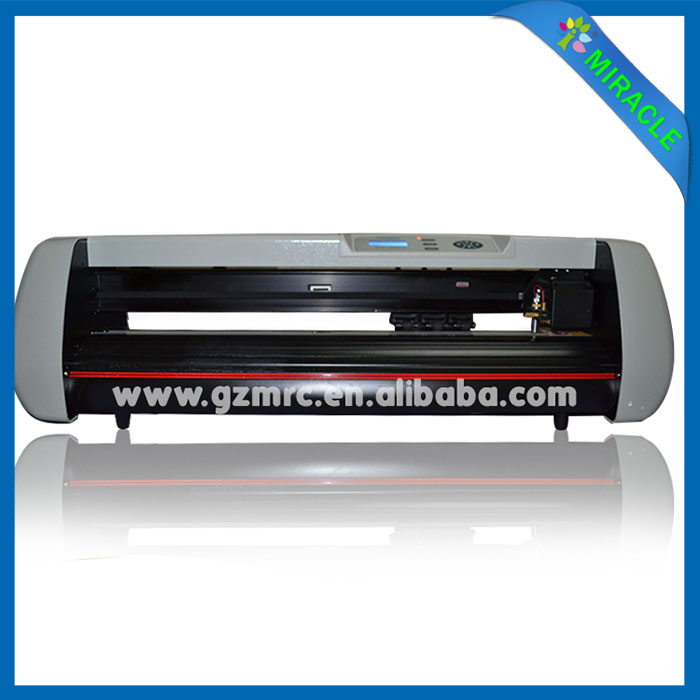

24"Cutting plotter
Place of Origin: Guangdong China (Mainland) Brand Name: OEM Model Number: MI-CP01
Voltage: AC220V/110V,50Hz-60Hz Cache Capacity: 1M Paper Feed Width: 710/880/1340mm
Cutter Pressure: 10-400g Cutting Width: 400mm/630mm/800mm/1.2m Cutting Speed: 4
Voltage: AC220V/110V,50Hz-60Hz Cache Capacity: 1M Paper Feed Width: 710/880/1340mm
Cutter Pressure: 10-400g Cutting Width: 400mm/630mm/800mm/1.2m Cutting Speed: 4
Description
24"Cutting plotter
Packaging & Delivery
Packaging Detail:
Delivery Detail:
SC cutting plotter :

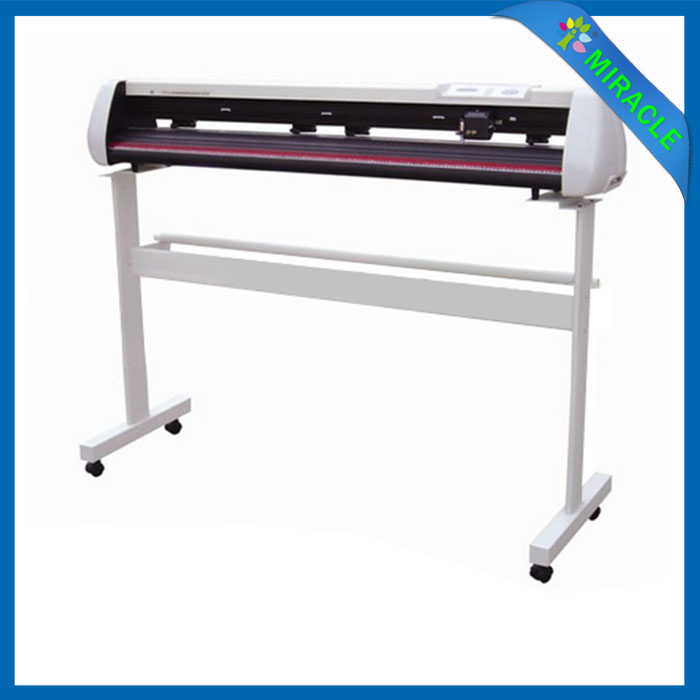

1. High quality Aluminum stands, more durable and steady, high-grade.
2. Blue & Yellow backlight LCD, more clear and bright.
3. USB 2.0 interface, support hot-swappable.
4. Inertial rotating blade holder enables more accurate and high quality cutting.
5. Digital force & speed adjustable, direct and steady.
6. Auto. memory of blade force & speed, adjustable at any time, easy to use.
7. Emergency stops & stops to return at any time to monitor the cutting quality, easy to operate.
8. Bulk copy up to 99, saving time and strength.
9. Unique red cutting slot, elegant, easy to operate.
Packaging & Delivery
Packaging Detail:
Delivery Detail:
SC cutting plotter :
1. High quality Aluminum stands, more durable and steady, high-grade.
2. Blue & Yellow backlight LCD, more clear and bright.
3. USB 2.0 interface, support hot-swappable.
4. Inertial rotating blade holder enables more accurate and high quality cutting.
5. Digital force & speed adjustable, direct and steady.
6. Auto. memory of blade force & speed, adjustable at any time, easy to use.
7. Emergency stops & stops to return at any time to monitor the cutting quality, easy to operate.
8. Bulk copy up to 99, saving time and strength.
9. Unique red cutting slot, elegant, easy to operate.
| MODEL | MI-CP01A | MI-CP01 | MI-CP01B | MI-CP01C | MI-CP01D |
| Drive Motor | Sepecial Stepper Motor | ||||
| Media Size | 470mm/1.54ft | 710mm/2.33ft | 880mm/2.89ft | 1120mm/3.67ft | 1340mm/4.40ft |
| Cutting Size | 390mm/1.28ft | 630mm/2.07ft | 800mm/2.62ft | 1040mm/3.41ft | 1260mm/4.13ft |
| Max.Cutting Speed | 400mm/s | ||||
| Cutting Force | 10~400g | ||||
| LCD | With | ||||
| Buffer capacity | 1Mb | ||||
| Resolution | 0.025mm/step(0.001in./step) | ||||
| Repeatability | 0.127mm/0.005in. | ||||
| Commands Set | HPGL or DMPL | ||||
| Interfaces | Serial, USB optional | ||||
| Positioning Mode | Origin Setup atrandom available | ||||
| Copy Function | Up to 99 copies | ||||
| Power | 100W | ||||
| Power requirementst | AC220V/110V,50Hz~60Hz | ||||
| Windows Driver | Direct Output from CorelDraw | ||||
| Packing Size (WXDXH) | 0.8X0.36X0.4m | 1.04X0.36X0.4m | 3.90X1.18X1.31ft | 4.69X1.18X1.31ft | 5.38X1.18X1.31ft |
| 0.62X1.18X1.31ft | 3.41X1.18X1.31ft | ||||
| G./Weight | 14KG/31lbs | 20KG/45lbs | 25KG/55lbs | 32KG/70.4lbs | 39.0KG/86lbs |
