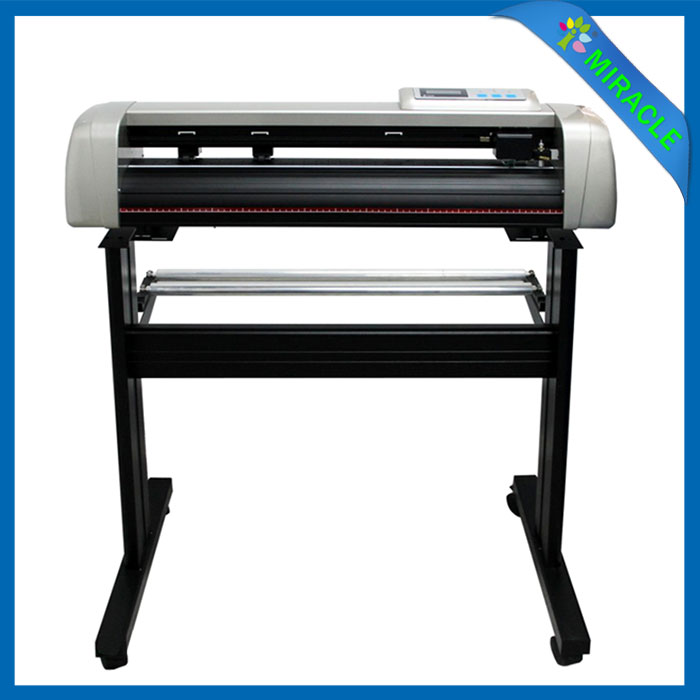

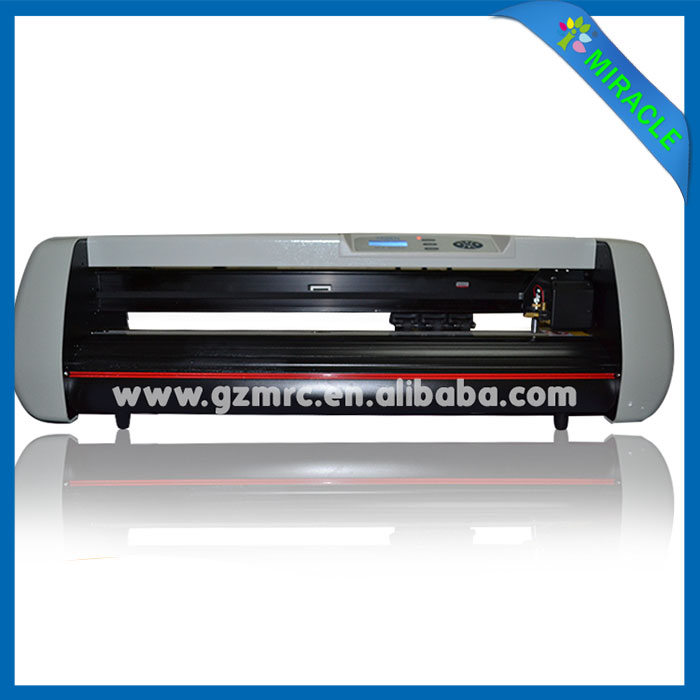

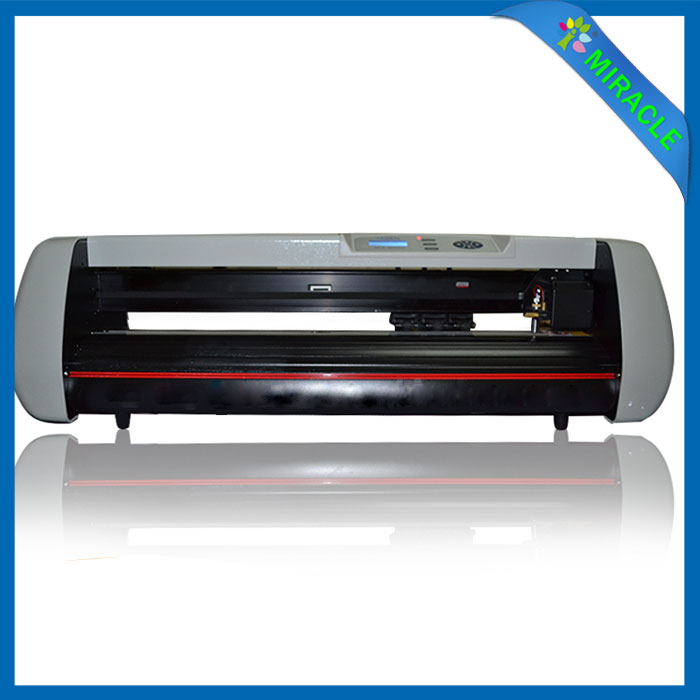

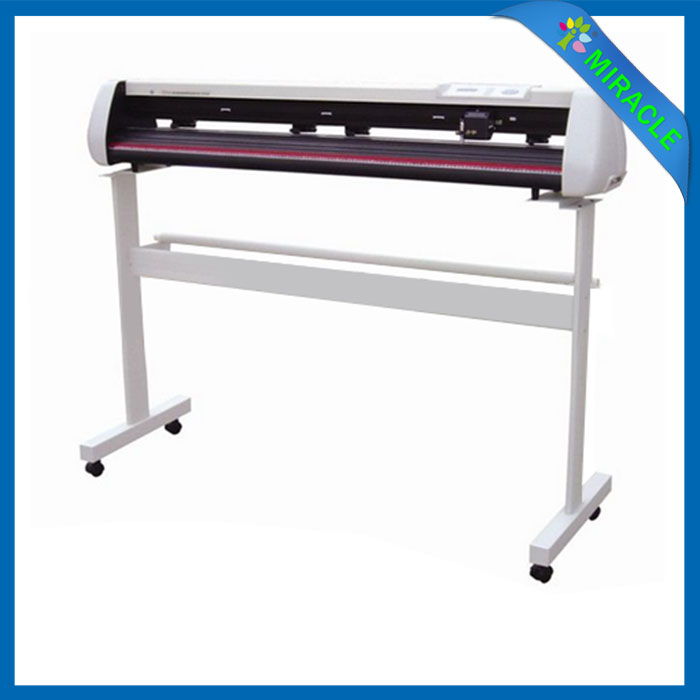

24" CUTTING PLOTTER

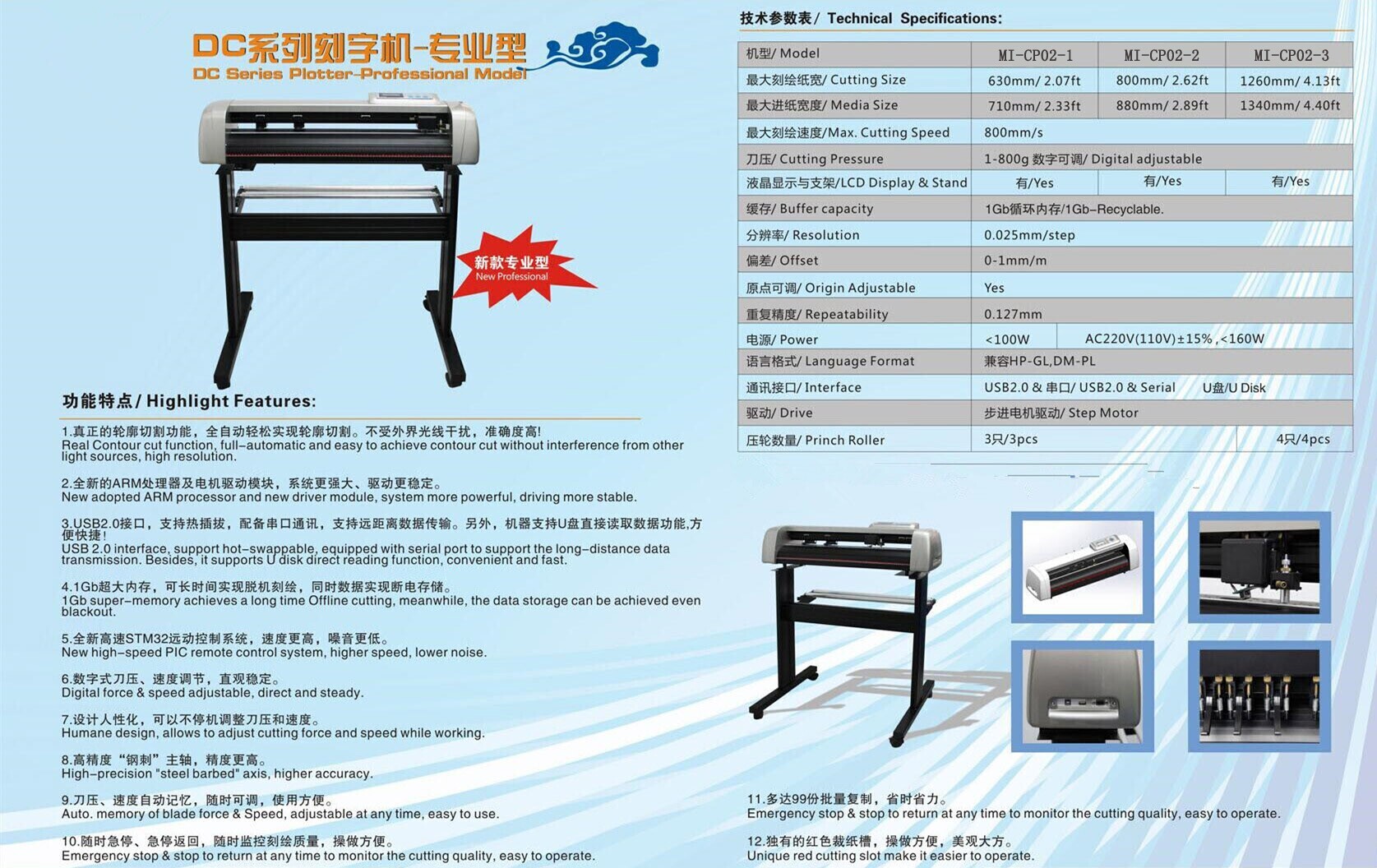

DC Series Plotter-Professional Model

Description

Highlight Features:
1、Rael Contour cut function,full-automatic and easy to achieve contour cut without interference from other light sources,high resolution.
2、New adopted ARM processor and new driver module,system more powerful,driving more stable.
3、USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.Besides,it supports U disk direct reading function,convenient and fast.
4、1Gb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.
5、New high-speed STM32 remote control system, higher speed, lower noise.
6、Digital force & speed adjustable, direct and steady.
7、Humane design, allows to adjust cutting force and speed while working.
8、High-precision "steel barbed" axis, higher accuracy.
9、Auto. memory of blade force & Speed, adjustable at any time, easy to use.
10、Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
11、Bulk copy up to 99, saving time and strength.
12、Unique red cutting slot make it easier to operate.

Data Specifications:
Model：MI-CP02	MI-CP02-1		MI-CP02-2	MI-CP02-3
Cutting Size	630mm/2.07ft		800mm/2.62ft	1260mm/4.13ft
Media Size	710mm/2.33ft		880mm/2.89ft	1340mm/4.40ft
Cutting Speed	800mm/s
Cutting Pressure	1-800g Digital adjustable
LCD Display	Yes		Yes	Yes
Buffer capacity	1GB - Recyclable.
Resolution	0.0254mm/step
Offset	0-1mm/m
Origin Adjustable	Yes
Repeatability	0.127mm
Power	<100W	AC220V(110V)±15% ,<160W
Language Format	HP-GL,DM-PL
Interface	Serial Port&USB2.0
Drive	Step Motor
Princh Roller	3pcs			4pcs

Specifications are subject to change without prior notice.
